    Peppermint

     Product Description

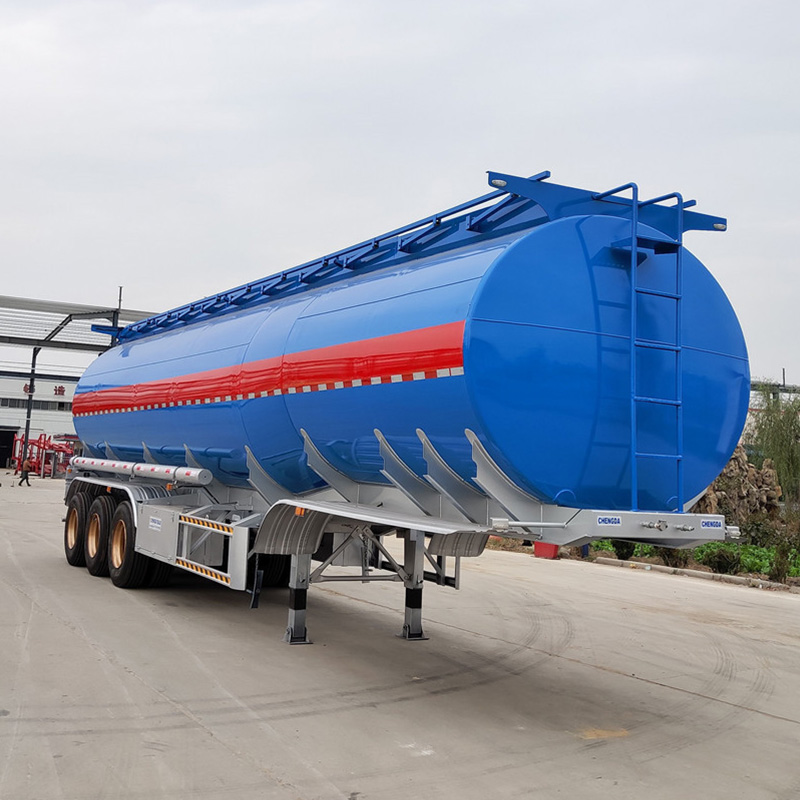

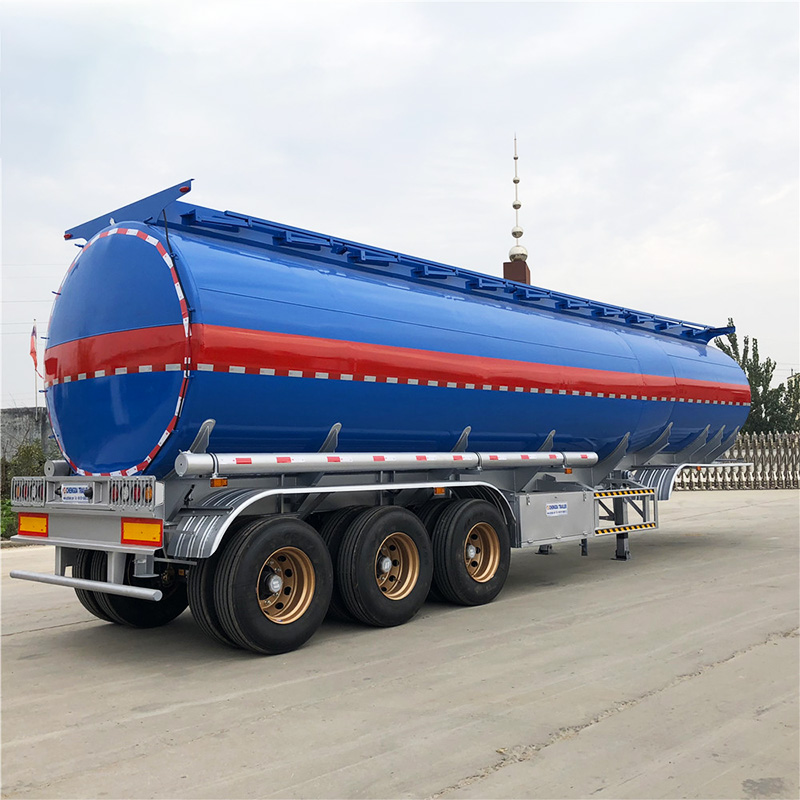

    Fuel Tanker Semi Trailer is used for carrying different liquid like fuel, petrol, water, palm oil, bitumen asphalt etc.The volume of the fuel tankers transport semi trailer can be customized, to reach 40,000 litres, 45,000 litres, 54,000 litres, up to 90,000 litres. With the different compartments, like two, three, four, or more compartments, to load a different liquid.It has many advantages:
    ---10 year Long service life by tanker automacit arc welding
    ---12% Larger volume by semi elliptical section barrel design
    ---More safty by 7%Lower center gravity Gooseneck design
    Compared with ordinary single tank trucks, the tanker trailer can effectively improve transportation efficiency.
    Specification
    Model Name
    Fuel Tank Trailer
    Compartments
    8
    Volume
    45000 50000 liter
    Axle
    2 - 4 pcs 13 - 20tons BPW or Fuwa Axles
    Tanker body
    6mm
    Main beam
    Opting for high tensile steel Q345B welded by automatic submerged-arc processes
    Suspension system
    Mechanical Suspension

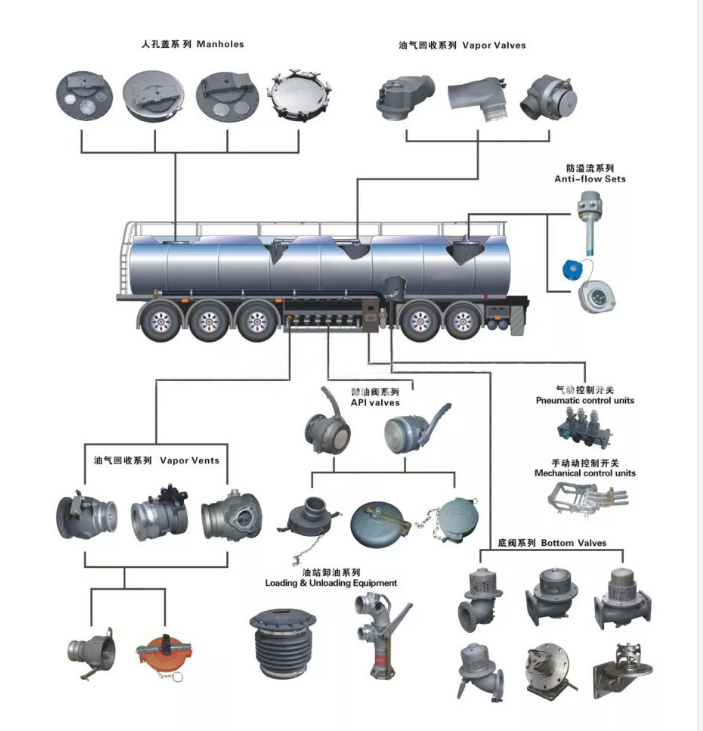

    Manhole cover
    500mm manhole cover 8 sets
    Landing Gear
    JOST brand  heavy duty landing gear 28t
    Discharge valve
    4''disc valve,8pc
    Bottom valve
    8pc
    Brake system
    Dual line brake system
    Bottom valve
    3", 4" Contral by Pneumatic Block
    Manhole
    2 - 9 pcs 16", 20" with vent valve
    Spare Wheel Bracket
    2'' bolt-in king pin
    Accessories
    One standard tool box,fire extinguisher 2 pcs

    Strong Steel structure

    Steel frames are built with top-class hot rolled or rolled steel plate, automatically welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.

    Polyurethane combination paint

    The tanker is shot blasted with primer once and polyurethane combination paint twice. Strong resistance and strong adhesion.
    A plurality of anti-wave baffles are arranged in the tank body. High pressure gas leak test is adopted to ensure that the tank body has high strength, stable center of gravity and safe and stable vehicle transportation.

    Rational analysis design

    Adhere to the concept of even stress on the trailer frame. 42 sturdy rib design to ensure the safety and carrying capacity of the trailer.
    Why Choose Us
    We have received customers from all over the world, such as Senegal, Ghana, Botswana and the Philippines, and established good cooperation with them.Our factories and offices are open and welcome to visit, what you see is what you will receive
