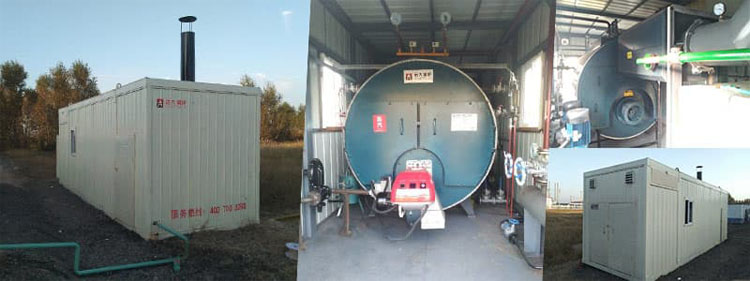

     0.5 1 2 3 4 5 6 ton gas or oil steam output portable mobile container boiler

    Boiler features



    1.Custom built to suit your requirements;

    2.Pre-assembled;

    3.Skid mounted packaged design;

    4.Full lighting internal of the container;
    5.Full heating facility internal of the container to protect against adverse weather conditions;
    6.All pipe-work within the container complete to suit specification;
    7.All components fully wired within the container;
    8.Full Electrical, Mechanical and steam test carried out prior to dispatch to your premises;
    9.All pipe-work internal of the container is fully insulated to required specification;
    10.Stainless steel lined walls with full insulation;

    11.Connection points external of the container, in agreed positions for site service connection (by installer);
    12.Ventilation to meet current regulatory standards for boiler-house requirements.

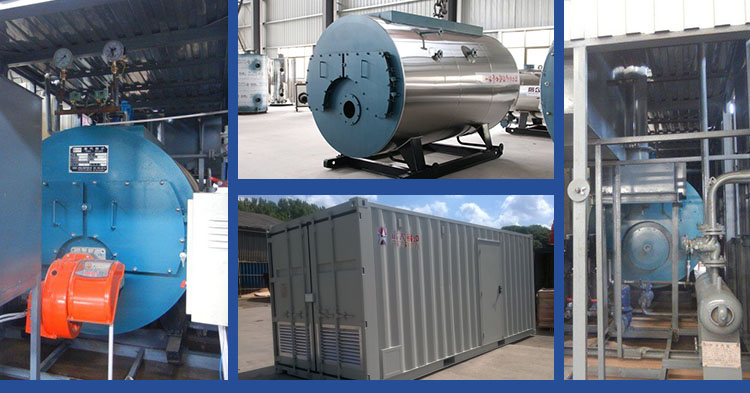

     0.5 1 2 3 4 5 6 ton gas or oil steam output portable mobile container boiler



    Boiler advantages

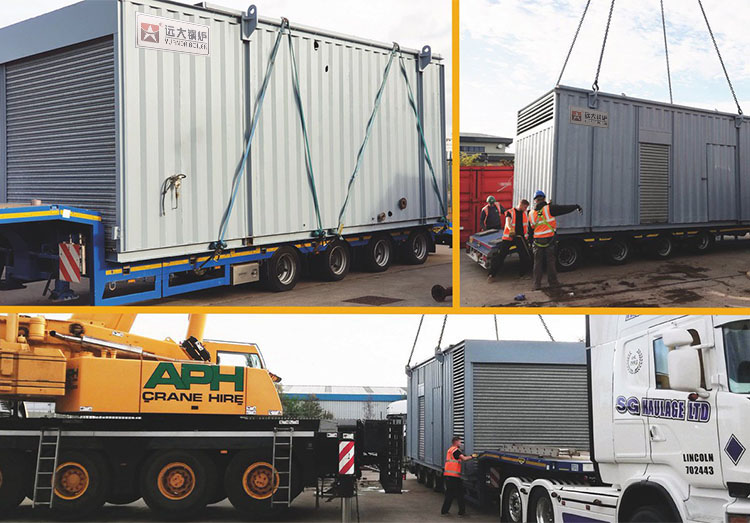

    1.Fully protable:convenient for move, suitable for outdoor work;

    2.Packaged delivery:the boiler is pre-installed before delivery, client can use directly after connecting water,electric and fuel;

    3.Space saving;
    4.Flexible and easily re-positioned if required;

    5.Increased safty:Each unit includes man doors with panic bar for easy entry and exit. Ventilation and fresh air makeup is provided through a louvered vent. Manual or Automatic fire extinguishers can be installed into the unit. Checker plate floor used for increased traction.

    6.Secure: Boiler rooms can be locked allowing only authorized Personnel. Security systems can be tied into the panel.

    7.Inclement weather protection:All boiler rooms contain a second source of heating using an oil furnace or a gas fired unit heater controlled by a separate thermostat.

    8.Custom color:The exterior can be painted a colour of your choice to be visibly appealing.

     0.5 1 2 3 4 5 6 ton gas or oil steam output portable mobile container boiler



    Technical datasheet



    Boiler model

    Rated capacity

    Rating pressure

    Steam temperature

    Fuel consumption

    Thermal efficiency

    Weight

    Light oil

    Heavy oil

    natural gas

    liquid gas

    t/h

    MPa

    °C

    Kg/h

    Kg/h

    m3/h

    m3/h

    %

    t

    WNS1-1.0-YQ

    1

    1.0

    184

    65.5

    67.3

    84.2

    29

          >98

    5

    WNS1.5-1.25-YQ

    1.5

    1.0

    184

    90

    95

      120

    44

    7

    WNS 2-1.25- YQ

    2

    1.25

    194

    130

    132

    165

    57.3

    8

    WNS3-1.25-YQ

    3

    1.25

    194

    192.9

    198

    212

    89

    10.7

    WNS4-1.25- YQ

    4

    1.25

    194

    258.2 267 283.4 120

    11.6
